Honeycomb Six-rotor Hybrid-Electric Drone and UAV for Surveying & Mapping, Inspection & Patrolling, Forestry & Agriculture

  • 1 - 10 Units
    $24,500.00
  • >=11 Units
    $18,500.00
Model Number:
HC-332H
Color:
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Graphic customization (Min. Order: 500 Units)
Customized packaging (Min. Order: 500 Units)

More

Customized logo (Min. Order: 500 Units) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-rotor
Condition:
New
Year Built:
2019
Place of Origin:
China
Diagonal distance:
1560mm
Maximum take-off weight:
19.8kg
Max payload:
5kg
Max flight speed:
15m/s
Max Altitude:
1000m (Above sea level)
Endurance:
240min@2kg100min@5kg
Power plant:
2.1kW Hybrid-Electric
Flight mode:
Manual / Auto
Control radius:
5~10km (no obstacles)
Wind resistance level:
level 5
Supply Ability
Supply Ability:
5 Unit/Units per Month
Packaging & Delivery
Packaging Details
We offer the industrial level air box for all the products.
Port
Beijing
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Video Description
Product Description
HC-332H Six-rotor Hybrid-Electric UAV system is a high-performance multi-rotor product. It has four-hour ultra-long endurance, carry heavy payload, high reliability, platform versatility, weather resistance and other industry leading advantages. It can be widely used in agriculture and forestry monitoring, material delivery, atmospheric monitoring, power inspection, oil and gas inspection, railway inspection, security investigation, land mapping, environmental monitoring, aerial photography and many other fields.

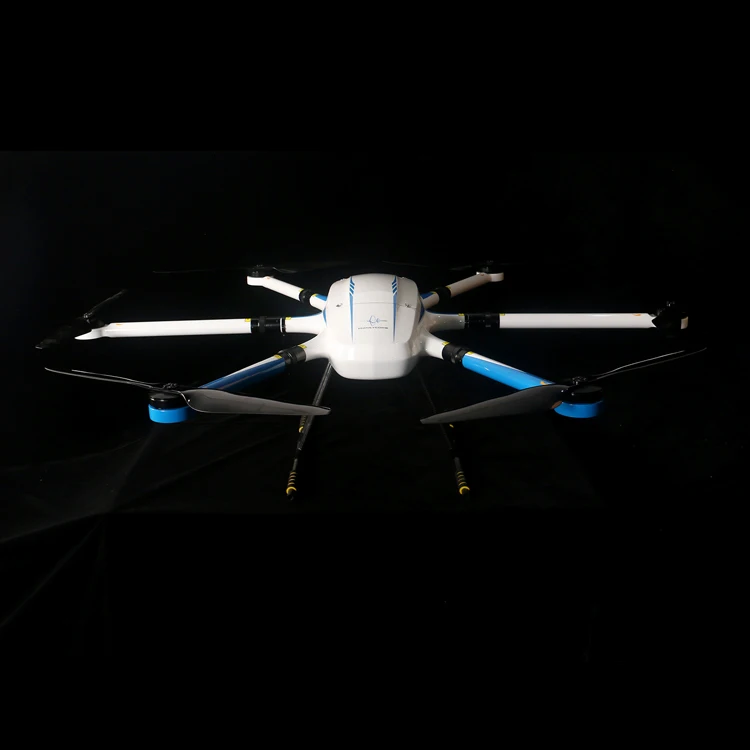

Front View

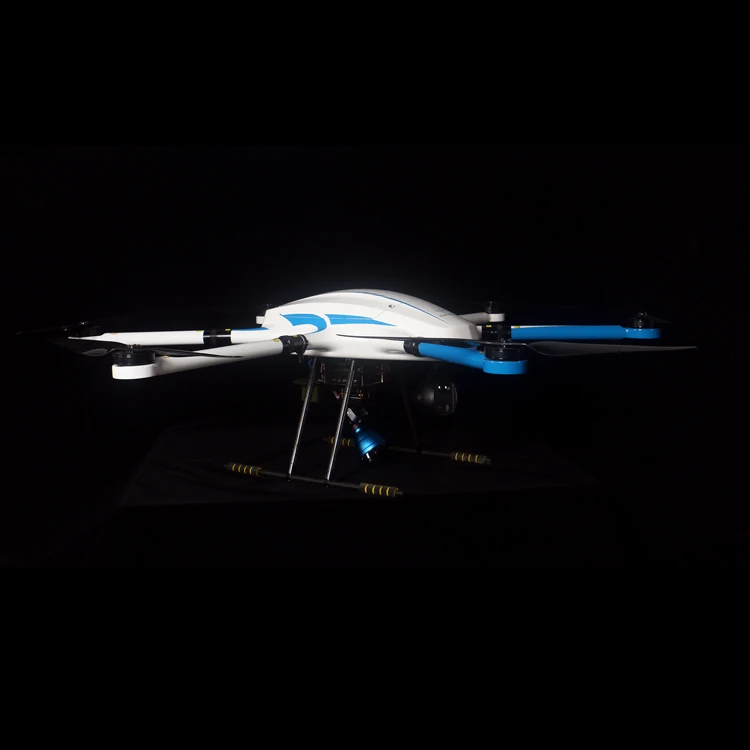

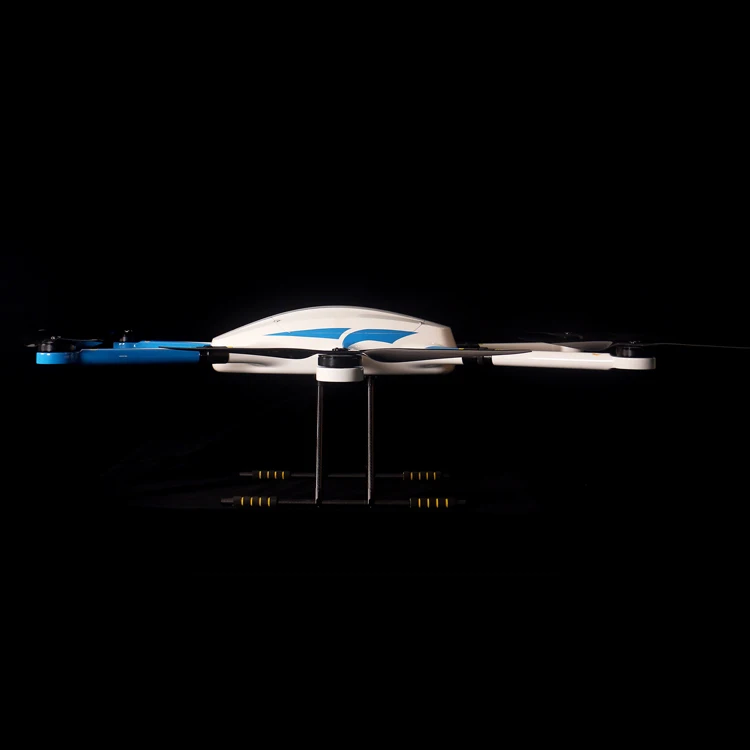

Side View

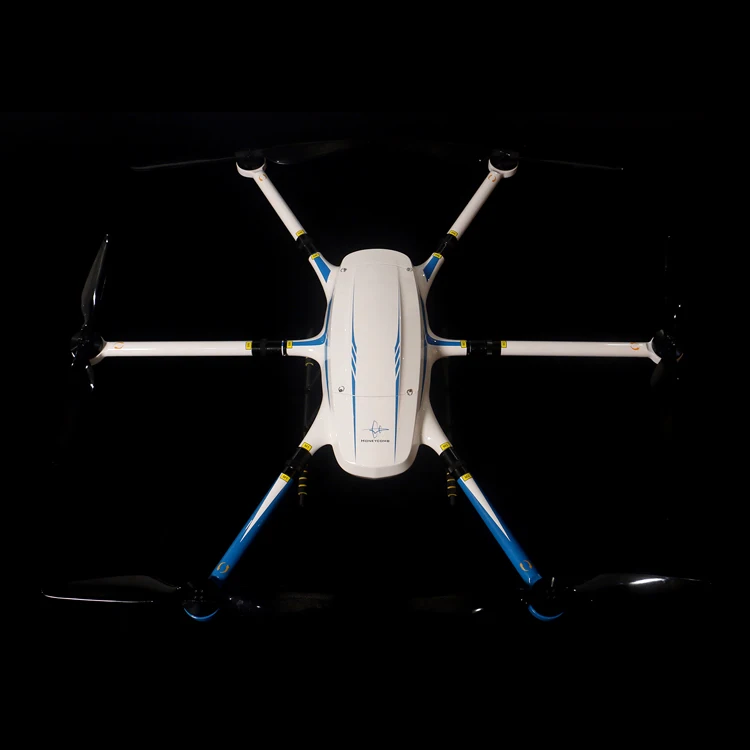

Top View











Isometric View










Isometric View

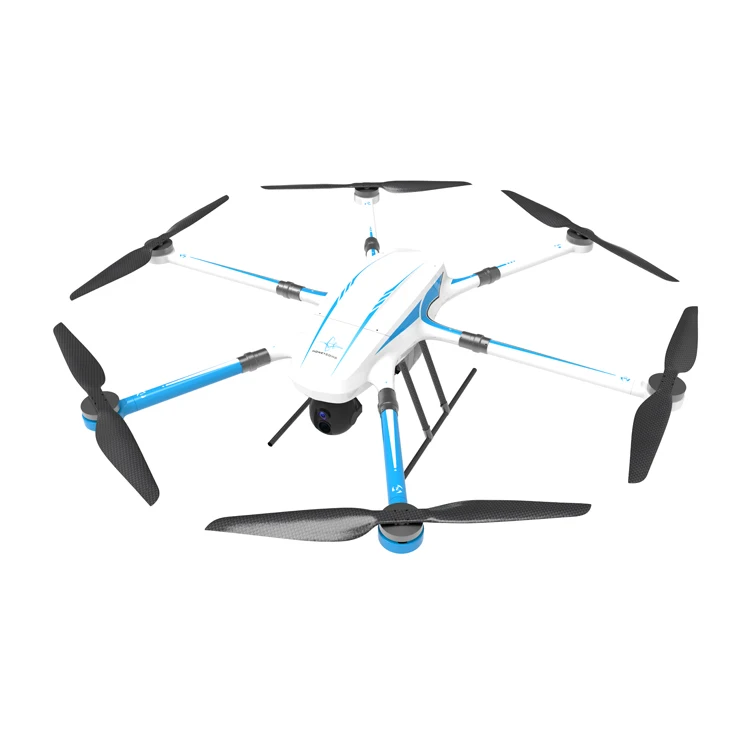

Rendering Diagram

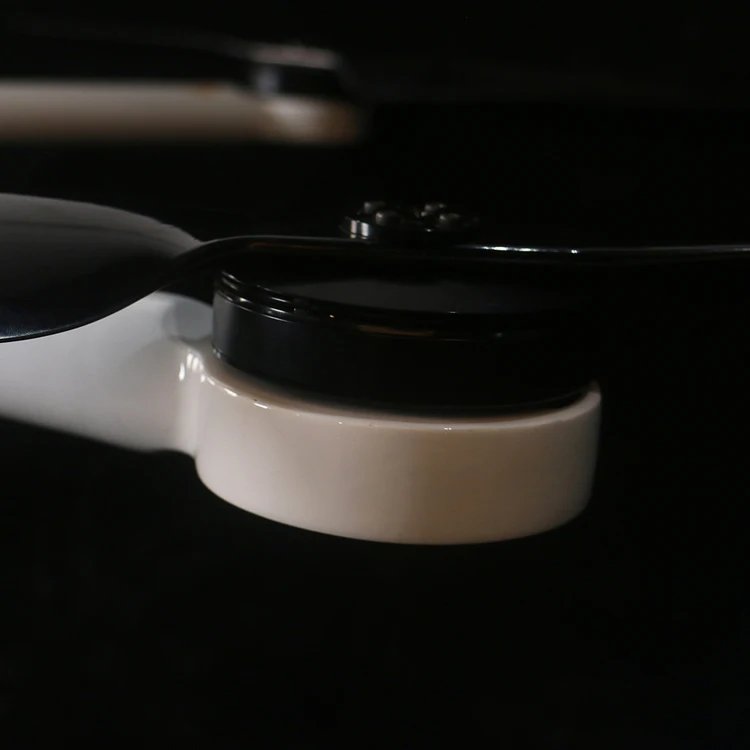

Power System

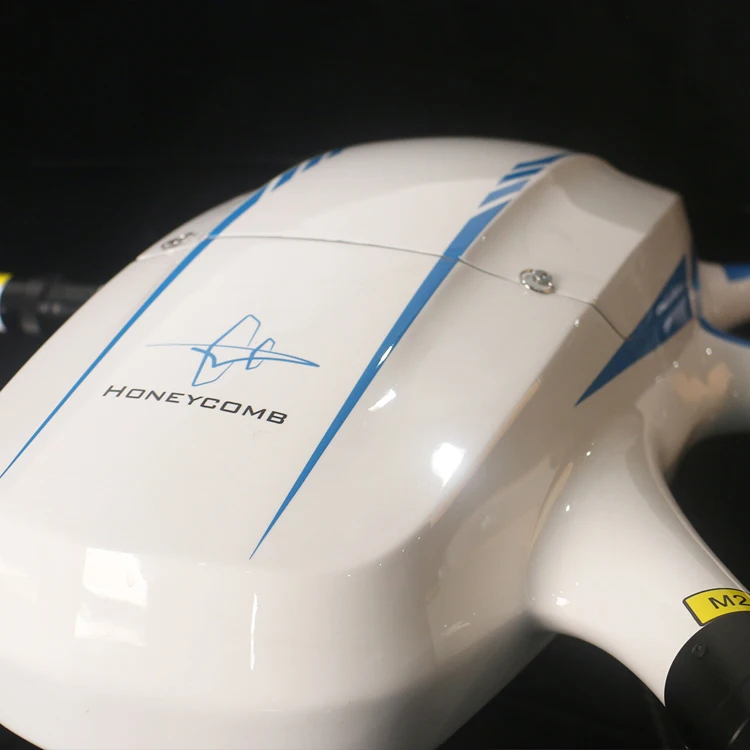

Avionics

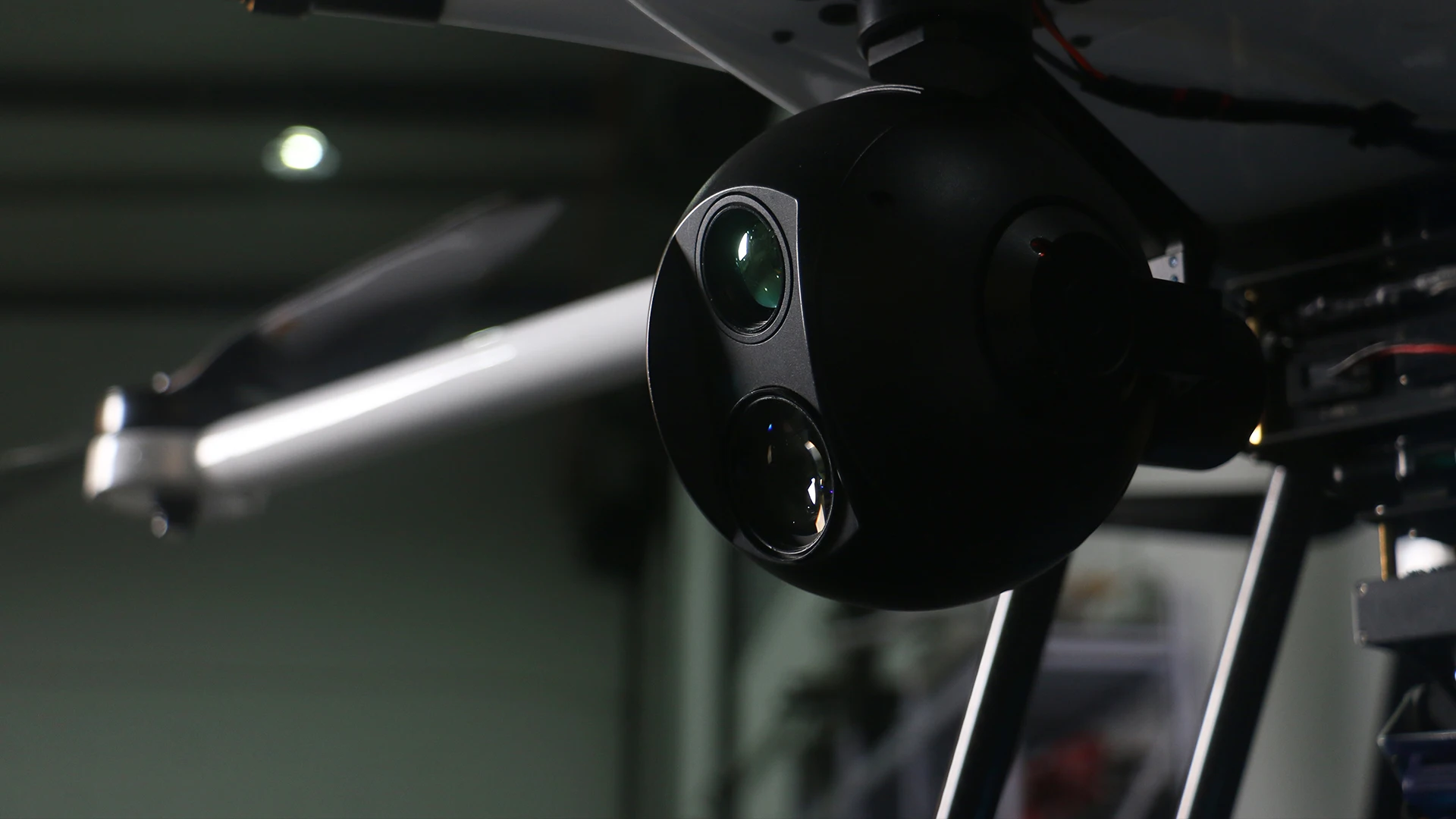

Payload

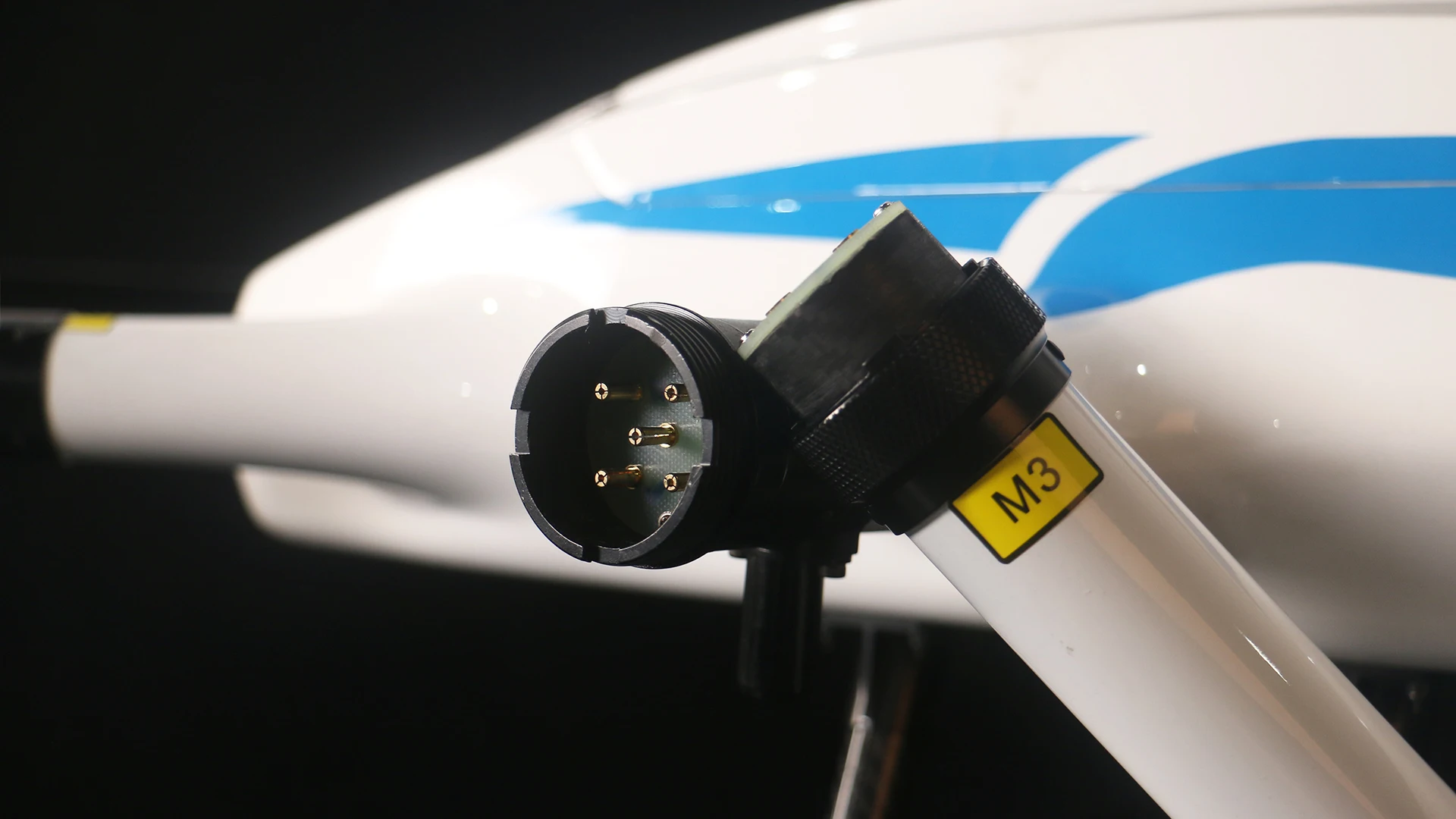

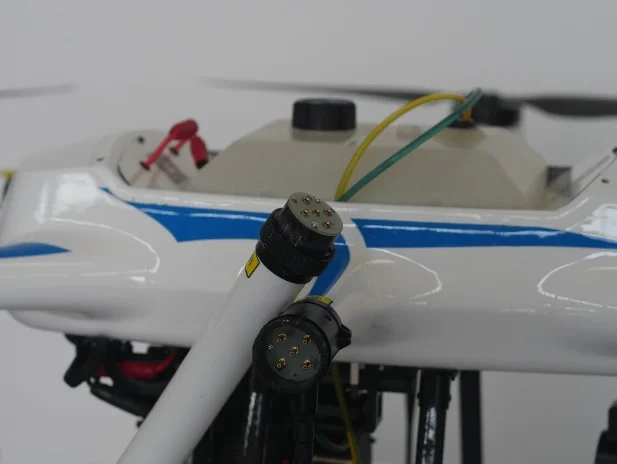

Arm Connection

Transmitter & Ground Station

Specifications
Category
Specification
Parameter














Flight System
Diagonal distance
1560mm
Unfolded dimension
1560×1560×430mm
Folded dimension
980×720×680mm
Manufacture material
The arms are of 3K carbon-fiber structure, and the body is of glass-fiber structure
Empty weight
12.8kg
Max take-off weight (sea level)
19.8kg
Standard payload
2kg
Max payload
5kg
Standard propeller
29×9.5mm
Cruising speed
12m/s
Max flight speed
15m/s
Max Altitude
1000m (Above sea level)

Endurance
240min@2kg

100min@5kg
Powerplant
2.1kW Hybrid-Electric
Engine
29cc
Electric motor
TM U8II 85KV
Electric speed controller (ESC)
60A brushless ESC
Fuel tank capacity
5L
Specific fuel consumption (SFC)
1L/h
Assembly way
Retractable arm






Flight Control System
Attitude angle navigation accuracy
Static 0.5˚ / Dynamic 1˚

Position navigation accuracy
Horizontal 10cm / Vertical 50cm

Positioning accuracy
Normal 10cm / Differential 1cm

Attitude control accuracy
±1˚

Direction control accuracy
±2˚

Position control accuracy
±10cm

Positioning algorithm
RTK GNSS/GNSS+INS

Operating temperature range
-20˚C ~ 40˚C

Flight mode
Manual / Auto

Emergency measure
Out-of-control return, low voltage return, fault alarm

Link system
Control radius
10km (no obstacles)
Video Output resolution
1080P@60fps

Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 40˚C
Rain resistance level
IP54

Aircraft Logistics
Control radius
5-10km (no obstacles)
Video Output resolution
1080P@60fps


Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 40˚C
Remote Controller
Rain resistance level
IP54



Aircraft Logistics
Unfold, fold time
≤10min

Fuel
92 gasoline with engine oil 25:1 mixed fuel


Remote Controller
Model
FUTABA T8FG

Work frequency
2.4 GHz

Max signal effective distance (no interference, no occlusion)
2km
Company Profile
Packaging & Delivery
We will offer the industrial level packaging for all the products.

Supply Ability

Supply Ability: 10 Set per Month
Technical Training

Training Objectives


In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.

Click here to get details.

Warranty&After-sales

Maintenance support



The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers. Click here to get details.

FAQ

Q: How will you deliver the goods to me?

A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time. Q: What are your terms of payment?

A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T. Q: Can I get an invoice?

A: Alibaba will offer you a PI (Proforma Invoice).


Q. Do you test your aircrafts before delivery?

A: Yes, we have 100% test before delivery, and we will offer you a test report.


Q: What is your warranty and after-services?

A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.


Q: Can you provide OEM services?

A: We can negotiate for OEM services.


Q: What is the lead time? (How long will it take to prepare my order?)

A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.


Q: Do you accept the order which requires some modifications on your drones or customized design?

A: Yes, we do


Q: Can you offer some other payloads meeting my requirements?

A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.


Q: Is there any tracking number for my order?

A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
