Honeycomb 50KG Payload long range Drone UAV

  • 1 - 10 Units
    $154,000.00
  • >=11 Units
    $128,500.00
Model Number:
HC-140
Color:
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Cargo Airplane
Condition:
New
Year Built:
2019
Place of Origin:
Beijing, China
Body length:
3251mm
Maximum take-off weight:
120kg
Max payload:
50kg
Cruising speed:
100 ~ 130km/h
Max Altitude:
5000m (Above sea level)
Endurance:
Up to 8h
Power plant:
Gasoline engine

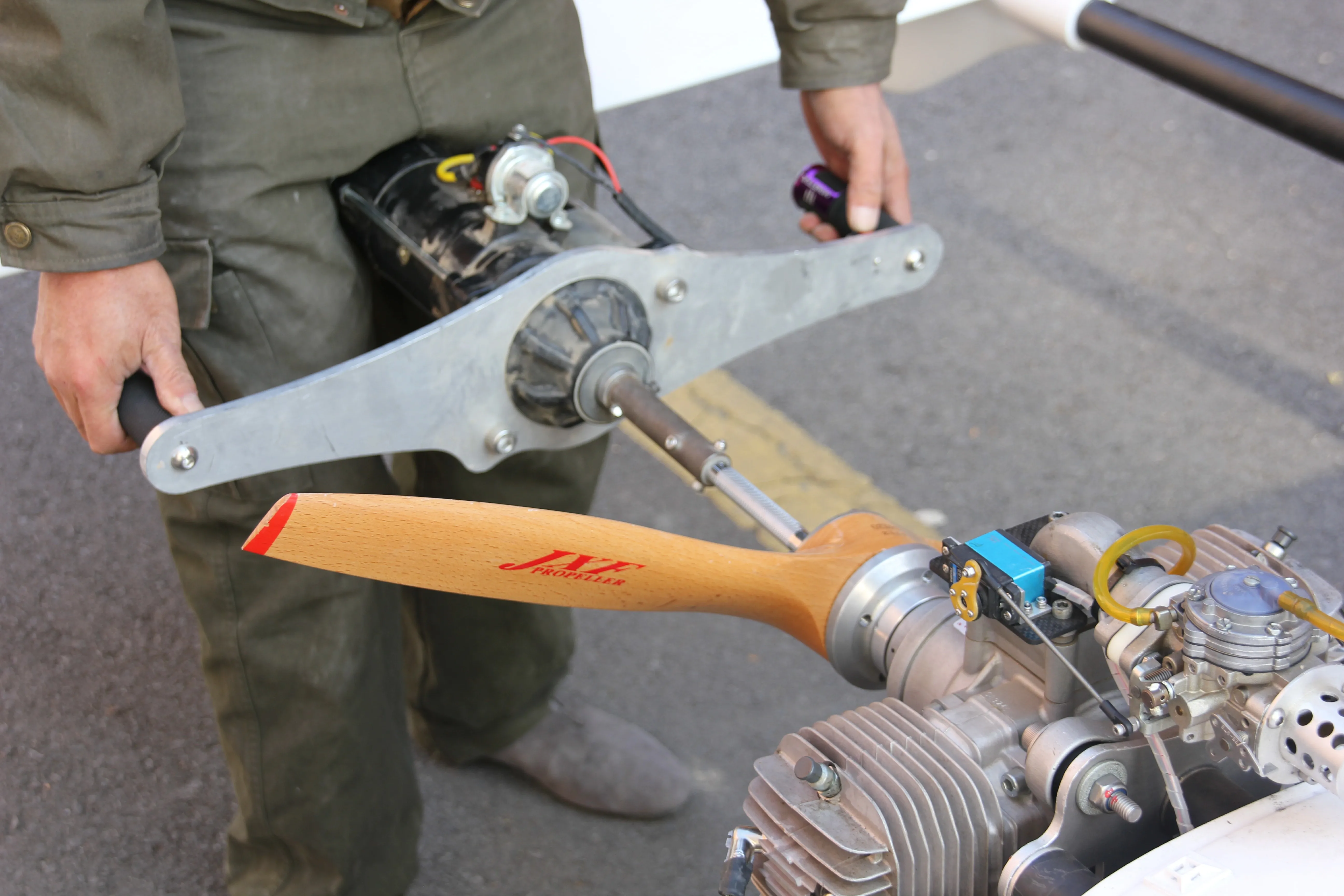

Engine:
3W275 Gasoline engine
Control radius:
≥120km (no obstacles)
Wind resistance level:
Level 5
Combo Set Offered:
0
Supply Ability
Supply Ability:
5 Unit/Units per Month
Packaging & Delivery

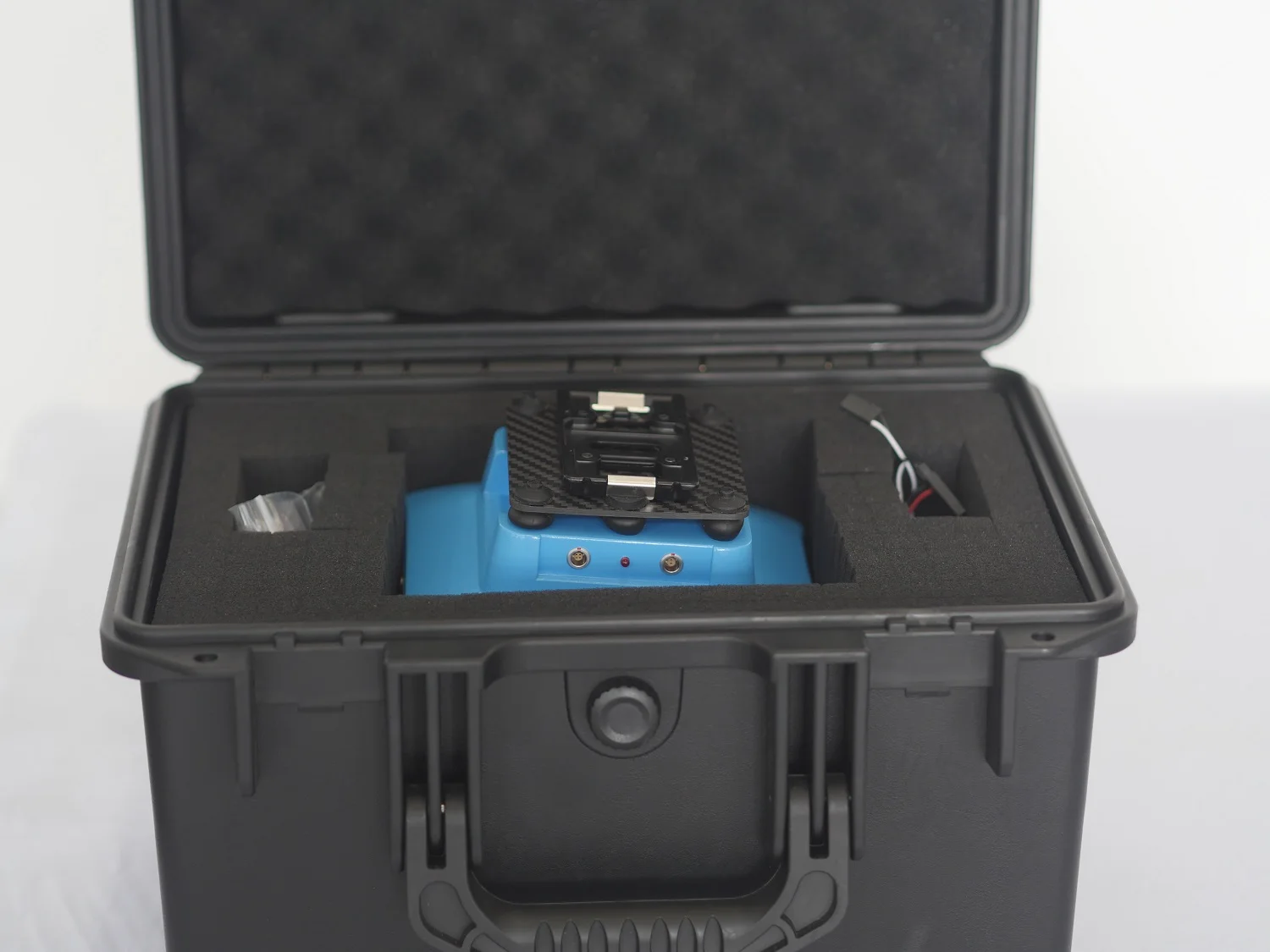

Packaging Details
We offer the industrial level air box for all the products.
Port
Beijing
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Video Description
Product Description

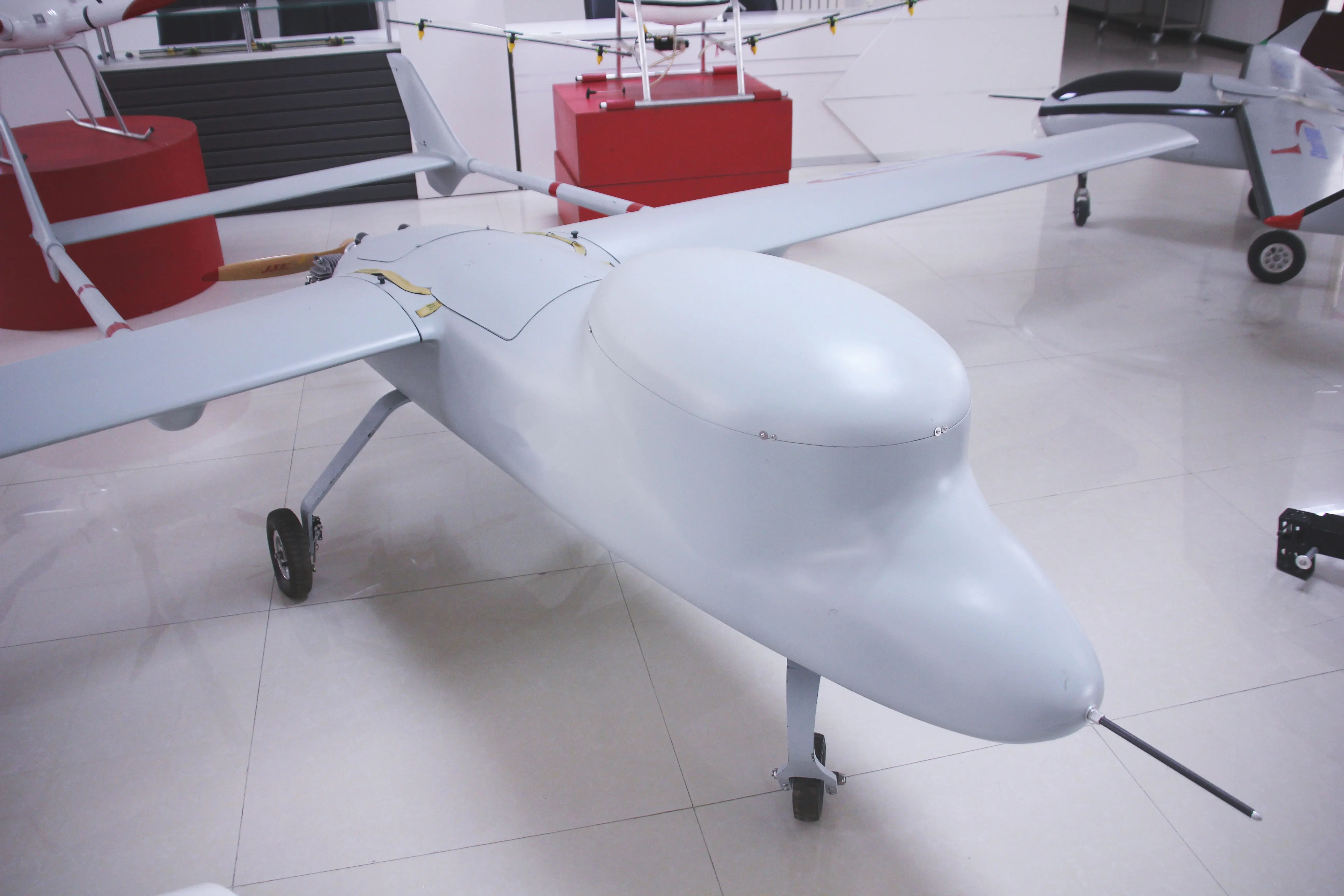

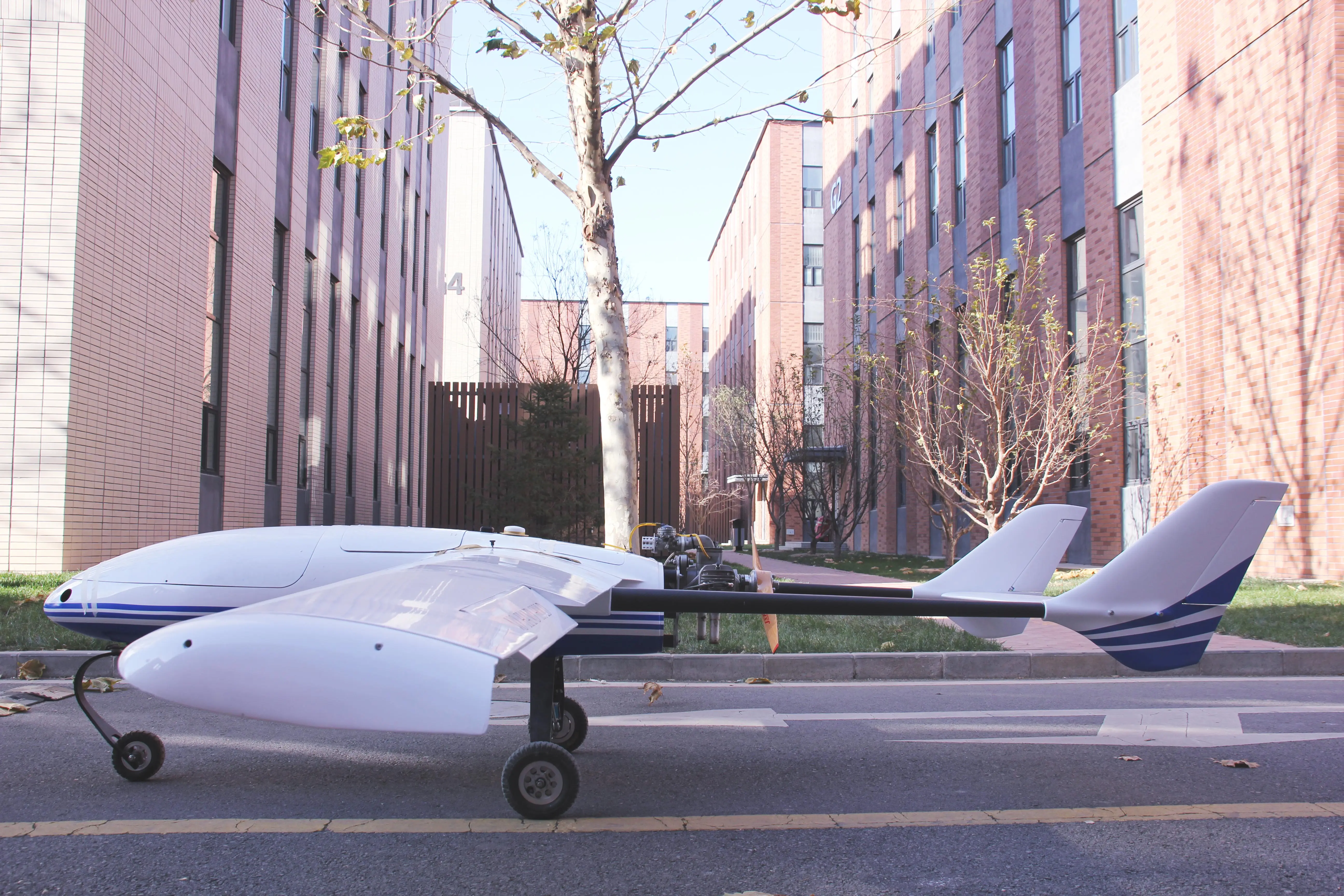

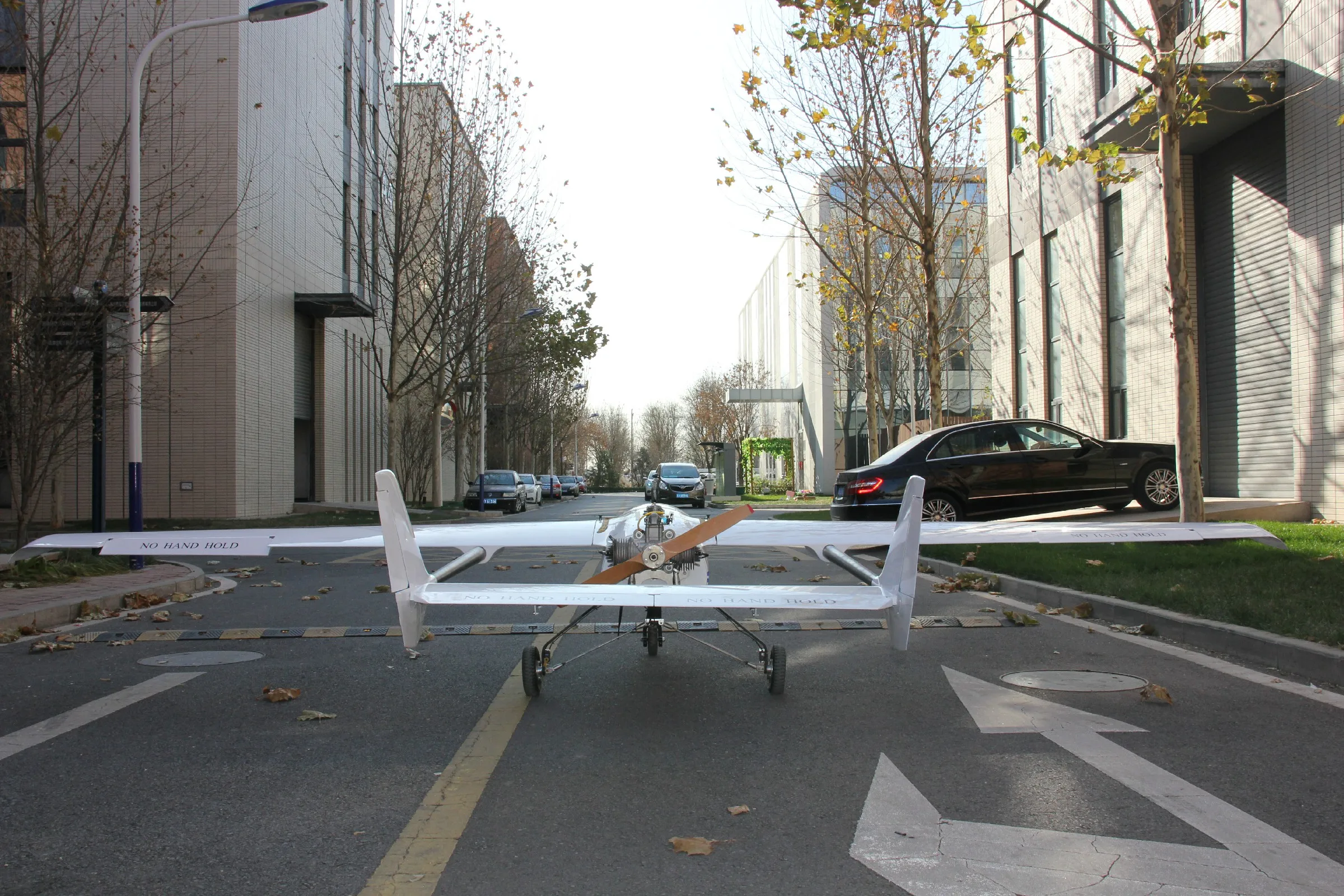

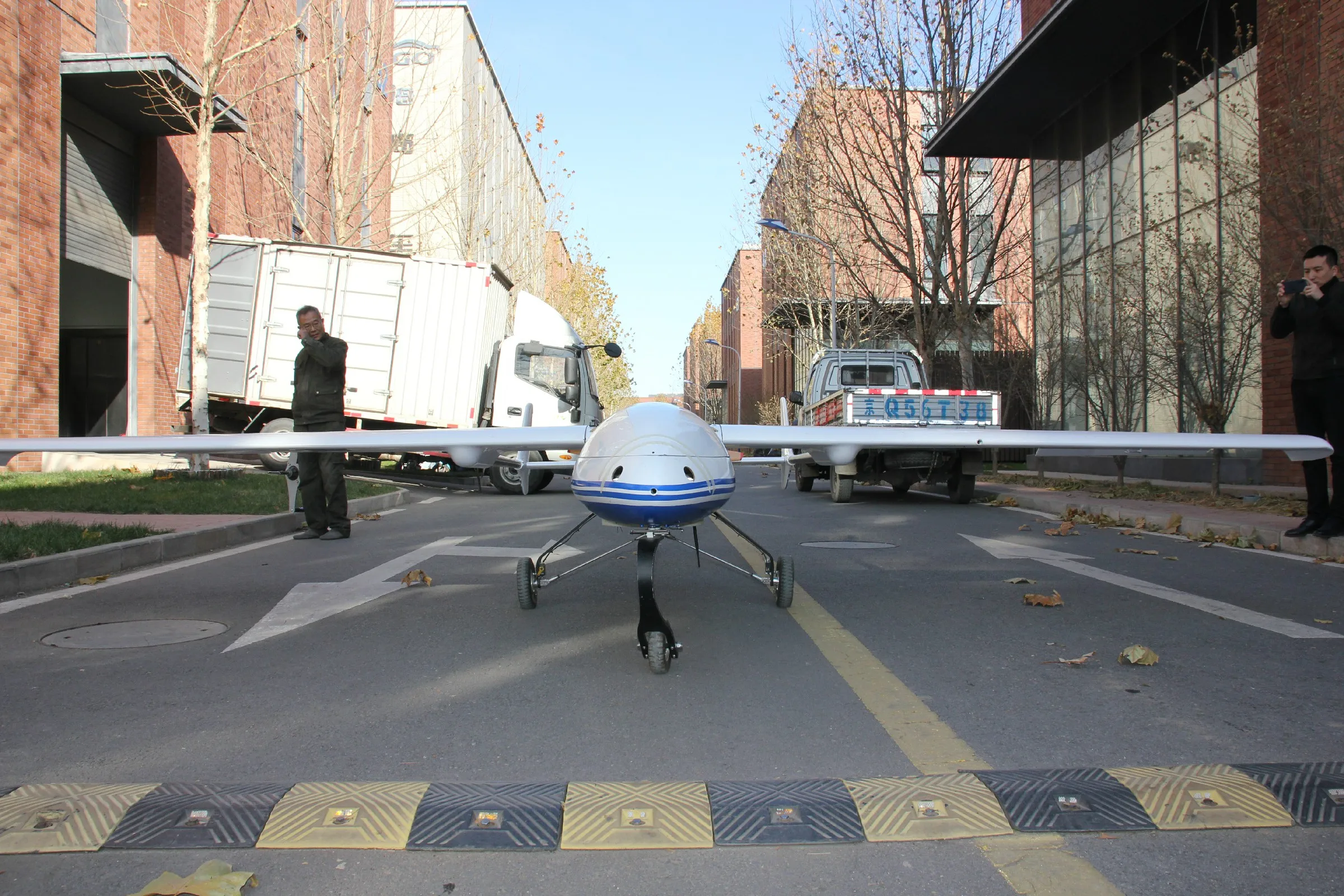

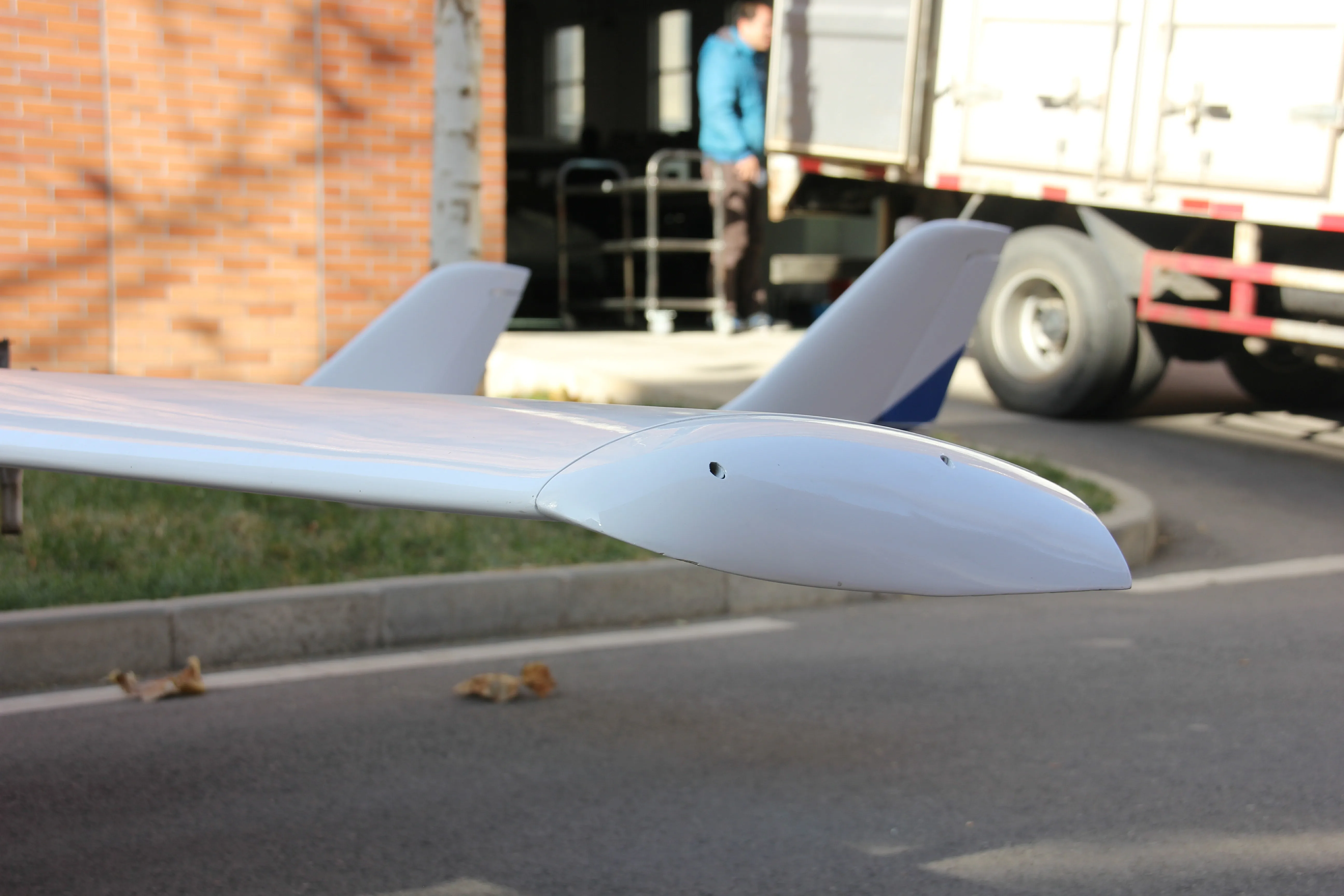

HC-140 Fixed-wing Gasoline-power UAV adopts engine push-back layout which provides high aerodynamic efficiency, up to 8 hours of flight time, convenient assembly, and transportation. The airframe of the whole aircraft adopts advanced manufacturing technology of aviation composite material, which has high structural strength, good fatigue resistance, long service life, and beautiful appearance. It can be used in emergency disaster reduction, border surveillance, maritime reconnaissance, pipeline inspection, aerial photography and aerial survey, land security rights and so on.
Specifications
Category
Specification
Parameter












Body length
3251mm
Wingspan
5370mm
Manufacture material
Carbon fiber Composites
Empty weight
55kg
Max take-off weight (sea level)
120kg
Standard payload
40kg
Max payload
50kg
Cruising speed
100 ~ 130km/h
Max flight speed
160km/h
Standard propeller
36×12inch
Max Altitude
5000m (Above sea level)
Endurance
Up to 8h
Powerplant
Gasoline engine
Engine
3W275 Gasoline engine
Fuel tank capacity
50L






Flight Control System
Specific fuel consumption (SFC)
5~10L/h
Assembly way
Detachable







Flight Control System
Aircraft layout
Fixed-Wing







Attitude angle navigation accuracy
Static 0.5˚ / Dynamic 1˚

Positioning accuracy
2.5m

Attitude control accuracy
±1˚

Direction control accuracy
±2˚

Position control accuracy
±0.2m

Altitude control accuracy
±0.5m

Positioning algorithm
GPS+RTK, Selective (GPS/ Glonass/ BeiDou)

Operating temperature range
-40˚C ~ 60˚C

Flight mode
Manual / Auto

Emergency measure
Out-of-control return, fault alarm
Link system
Control radius
≥120km (no obstacles)
Video Output resolution
1080P@60fps

Operational environment

Wind resistance level
Level 5
Operating temperature
-20˚C ~ 60˚C

Rain resistance level
Light rainfall

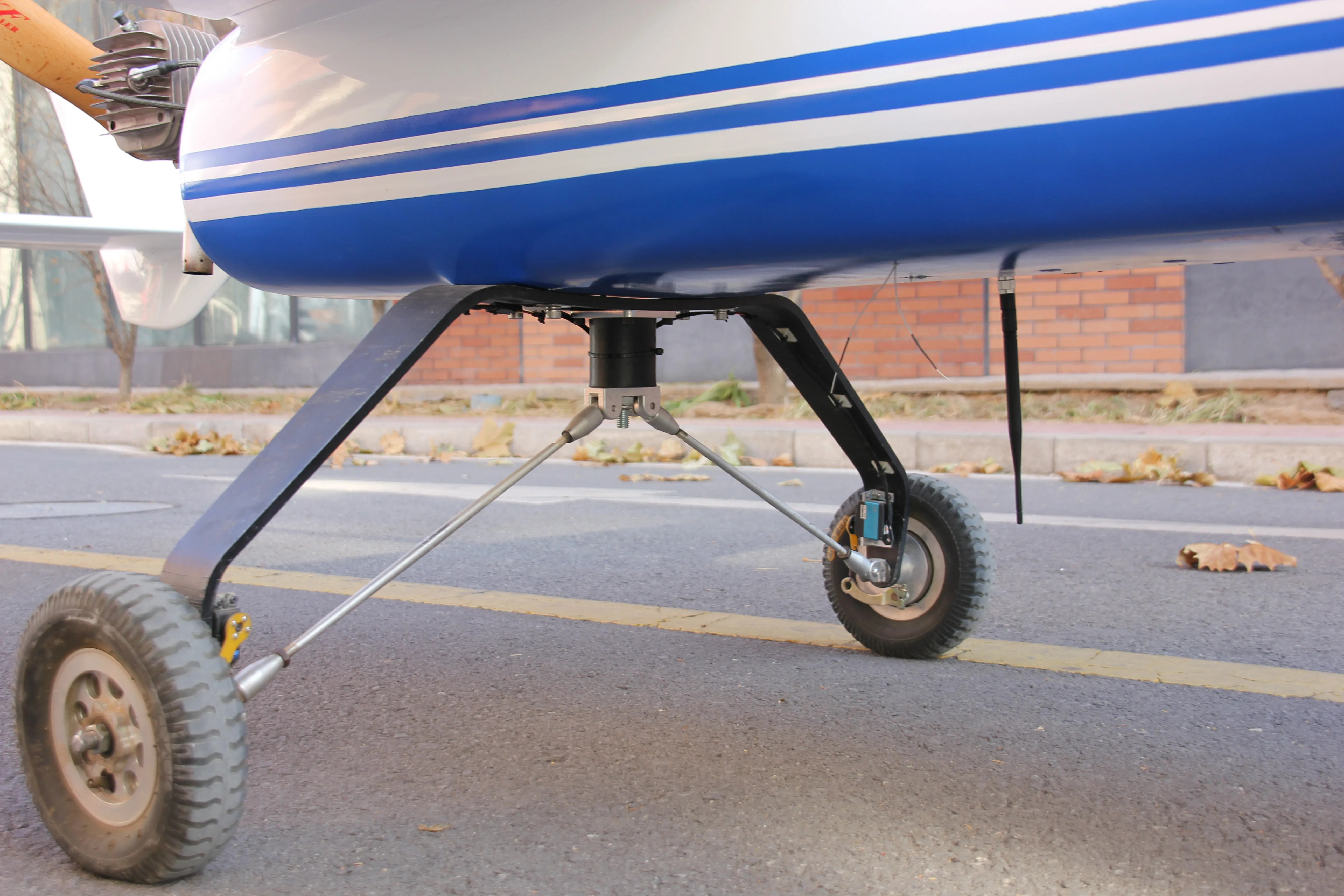

Take-off and landing mode
Taxiing (autonomous taxiing)
Glide (autonomous glide)



Take-off distance
200m
Landing distance
300m
(20m wide runway)


Aircraft Logistics
Preparation time
Take-off preparation ≤ 30min
Landing ≤ 20min



Fuel
95 Gasoline

Remote Controller
Model
FUTABA T8FG
Work frequency
2.4 GHz
Max signal effective distance (no interference, no occlusion)
2km


Payload
Photoelectric optical zoom pod


Infrared (30x zoom) pod


Thermal imaging camera


Multispectral camera

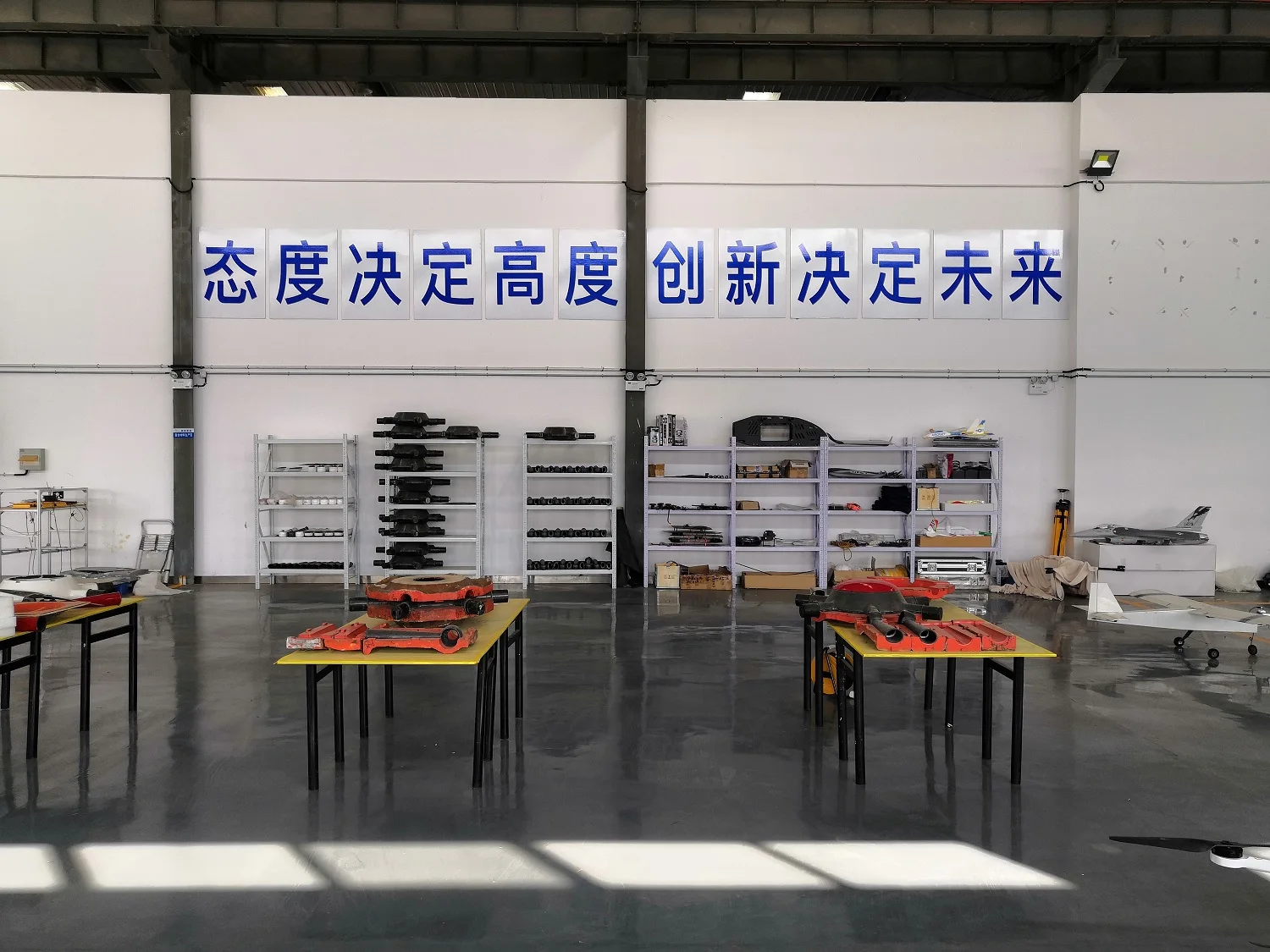

Company Profile
Packaging & Delivery
We will offer the industrial level packaging for all the products.

Supply Ability

Supply Ability: 10 Set per Month
Technical Training

Training Objectives


In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.

Click here to get details.

Warranty&After-sales

Maintenance support



The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers. Click here to get details.

FAQ

Q: How will you deliver the goods to me?

A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time. Q: What are your terms of payment?

A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T. Q: Can I get an invoice?

A: Alibaba will offer you a PI (Proforma Invoice).


Q. Do you test your aircrafts before delivery?

A: Yes, we have 100% test before delivery, and we will offer you a test report.


Q: What is your warranty and after-services?

A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.


Q: Can you provide OEM services?

A: We can negotiate for OEM services.


Q: What is the lead time? (How long will it take to prepare my order?)

A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.


Q: Do you accept the order which requires some modifications on your drones or customized design?

A: Yes, we do


Q: Can you offer some other payloads meeting my requirements?

A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.


Q: Is there any tracking number for my order?

A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
