UAV/Honeycomb// Cargo, material delivery, transport goods UAV Drone

  • 1 - 10 Units
    $131,000.00
  • >=11 Units
    $115,000.00
Model Number:
HC-132 Fixed Wing 20kg payload HC-132 VTOL 20kg payload HC-140 Fixed Wing 50kg payload HC-140 VTOL 50kg payload
Color:
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Customized packaging (Min. Order: 5 Units)

More

Graphic customization (Min. Order: 5 Units) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Cargo Airplane
Condition:
New
Year Built:
2019
Place of Origin:
Beijing, China
Body length:
3250mm
Maximum take-off weight:
9kg
Max payload:
20kg
Cruising speed:
100 ~ 120 km/h
Max Altitude:
4000m (Above sea level)
Endurance:
Up to 5.5h
Power plant:
Gasoline engine
Flight mode:
Manual / Auto
Control radius:
≥10km/ Cutomizable
Wind resistance level:
level 5
Supply Ability
Supply Ability:
5 Unit/Units per Month
Packaging & Delivery
Packaging Details
We offer Industrial Level Special for Drones Packaging.
Port
Beijing
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Video Description
Products Description

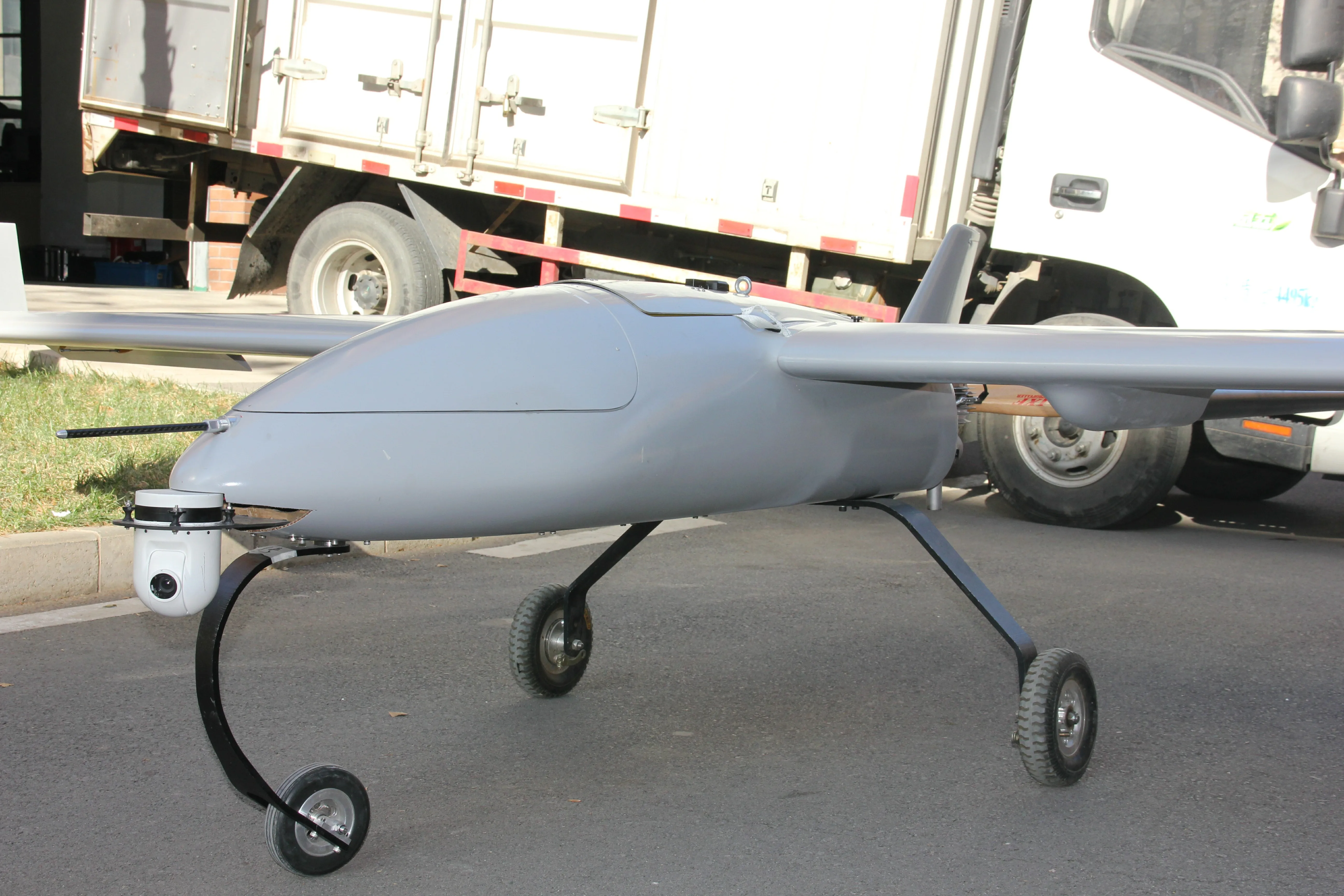

HC-132 Fixed-wing and Vertical Takeoff and Landing Gasoline-power UAV adopts engine push-back layout which provides high aerodynamic efficiency, up to 5.5 hours of flight time, convenient assembly, and transportation. The air frame of the whole aircraft adopts advanced manufacturing technology of aviation composite material, which has high structural strength, good fatigue resistance, long service life, and beautiful appearance. It can be used in Transportation, Cargo delivery, Long range Material Delivery, emergency disaster reduction, border surveillance, maritime reconnaissance, pipeline inspection, aerial photography and aerial survey, land security rights and so on.
Specifications
Category
Specification
Parameter








Flight System
&
Powerplant
Body Length
3251mm
Wingspan
5270mm
Payload
Customization
Manufacture material
Carbon fiber
Empty weight
55kg
Max take-off weight (sea level)
120kg
Standard payload
40.0kg
Max payload
50.0kg
Standard propeller
36×12 inch
Cruising speed
100 ~ 130km/h
Max flight speed
160km/h
Max Altitude
5000m (Above sea level)

Endurance
Up to 8h

Max Payload
Powerplant
Gasoline engine
Engine
3W275 Gasoline engine
Electric motor

Electric speed controller (ESC)
60A brushless ESC
Fuel tank capacity
50L
Specific fuel consumption (SFC)
5~10L/h
Assembly way
Detachable






Flight Control System
Attitude angle navigation accuracy
Static 0.5˚ / Dynamic 1˚

Position navigation accuracy
Horizontal 10cm / Vertical 50cm

Positioning accuracy
Normal 10cm / Differential 1cm

Attitude control accuracy
±1˚

Direction control accuracy
±2˚

Position control accuracy
±10cm

Positioning algorithm
RTK GNSS/GNSS+INS

Operating temperature range
-20˚C ~ 40˚C

Flight mode
Manual / Auto

Emergency measure
Out-of-control return, low voltage return, fault alarm

Link system
Control radius
≥120km (no obstacles)
Increase on Demand
Video Output resolution
1080P@60fps

Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 40˚C
Rain resistance level
IP54

Aircraft Logistics
Control radius
5-10km (no obstacles)
Video Output resolution
1080P@60fps


Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 40˚C
Remote Controller
Rain resistance level
IP54



Aircraft Logistics
Unfold, fold time
≤10min

Fuel
92 gasoline with engine oil 25:1 mixed fuel


Remote Controller
Model
FUTABA T8FG

Work frequency
2.4 GHz

Max signal effective distance (no interference, no occlusion)
2km
Company Profile
Packaging & Delivery
Technical Training
Warranty&After-sales

Maintenance support



The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers.
Click here to get details.

FAQ

Q: How will you deliver the goods to me?

A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time.

Q: What are your terms of payment?

A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T.

Q: Can I get an invoice?

A: Alibaba will offer you a PI (Proforma Invoice).


Q. Do you test your aircrafts before delivery?

A: Yes, we have 100% test before delivery, and we will offer you a test report.


Q: What is your warranty and after-services?

A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.


Q: Can you provide OEM services?

A: We can negotiate for OEM services.


Q: What is the lead time? (How long will it take to prepare my order?)

A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.


Q: Do you accept the order which requires some modifications on your drones or customized design?

A: Yes, we do


Q: Can you offer some other payloads meeting my requirements?

A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.


Q: Is there any tracking number for my order?

A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
